Draft: Update esviz documentation examples

Open abatalla requested to merge dev-update_examples into main

Status of examples in esviz documentation:

  • VizEquiMap.R (2nd line of caption slightly cut off) image

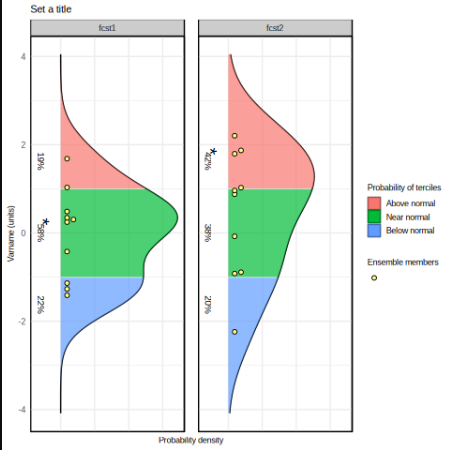

  • VizForecastPDF.R image

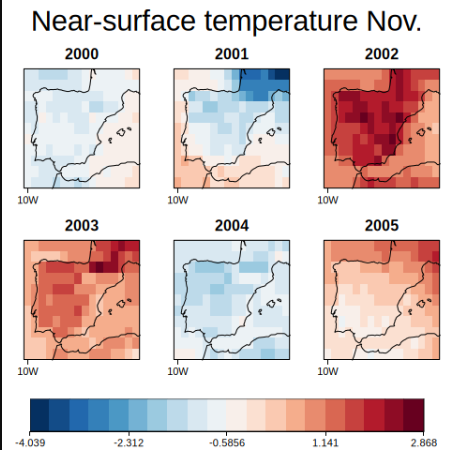

  • VizLayout.R image (bugfixed lats <- attr(map_temp$exp, "dataiables")$common$lat)

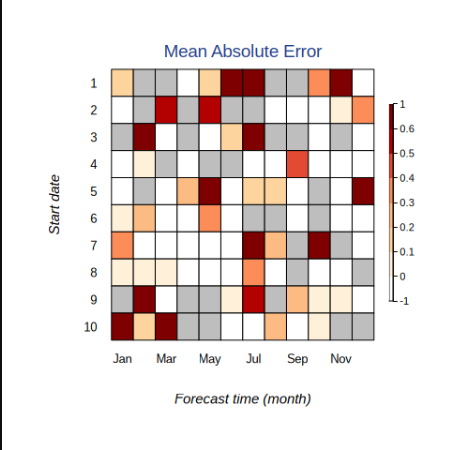

  • VizMatrix image

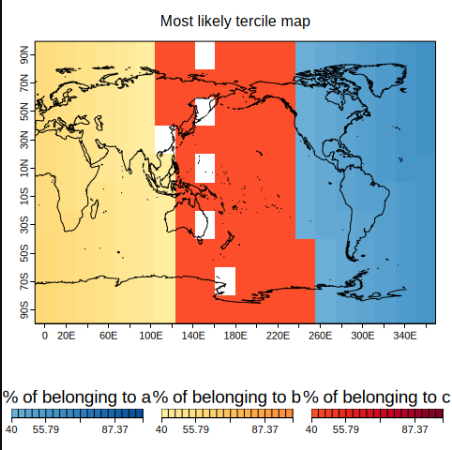

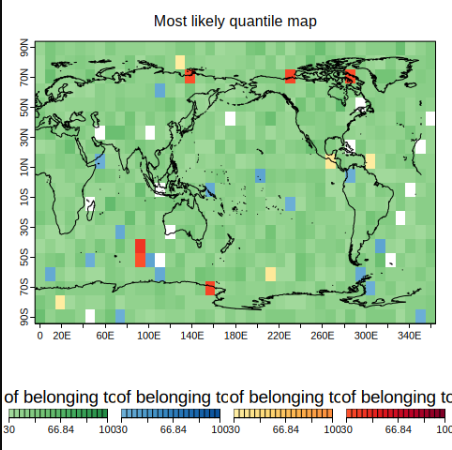

  • VizMostLikelyQuantileMap Screenshot_from_2025-09-12_14-48-34 image (added bar_extra_margin = c(1, 0, 1.5, 0) to make the bars slightly taller)

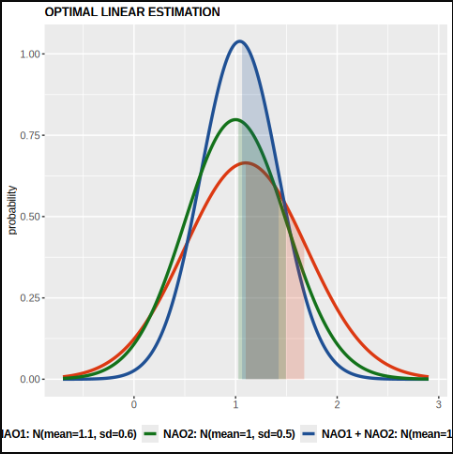

  • VizPDFsOLE - warning: Warning message: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0. ℹ Please use `linewidth` instead. size changed to linewidth in line 210. The warning is "displayed once every 8 hours" so I have to recheck. image

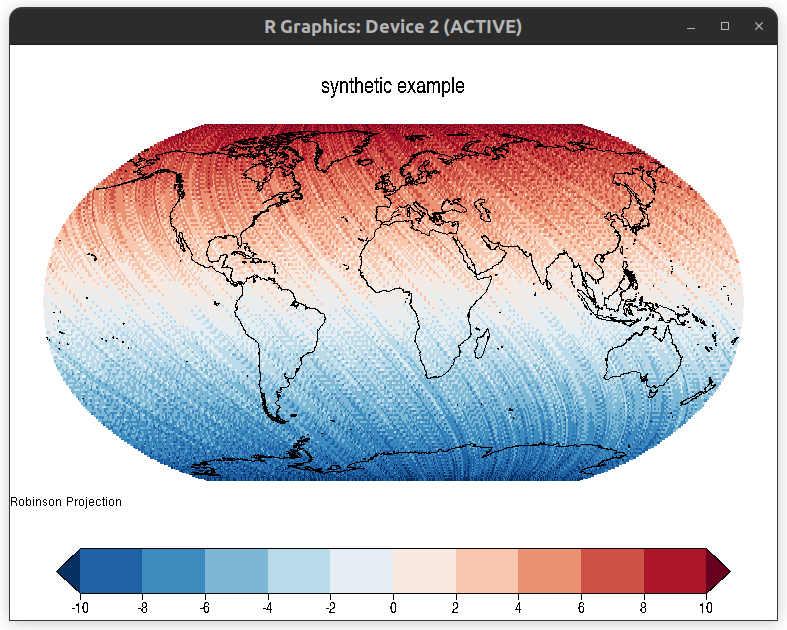

  • VizRobinson - works on terminal, error in Rstudio: Screenshot_from_2025-09-10_13-47-46 Error in Rstudio: Shadow graphics device error: r error 4 (Error in .External2(C_X11, paste0("png::", filename), g$width, g$height, : unable to start device PNG

  • VizScorecard - error:

Please install the `webshot2` package.

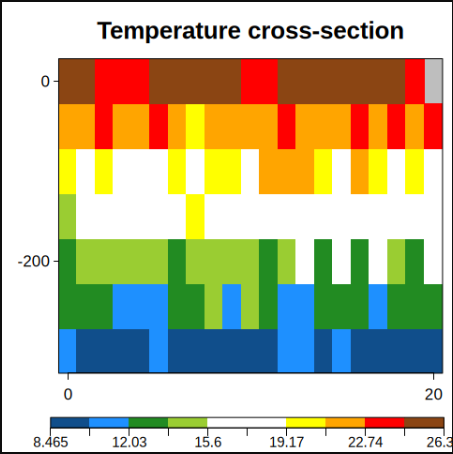

  • VizSection image
  • VizStereoMap image

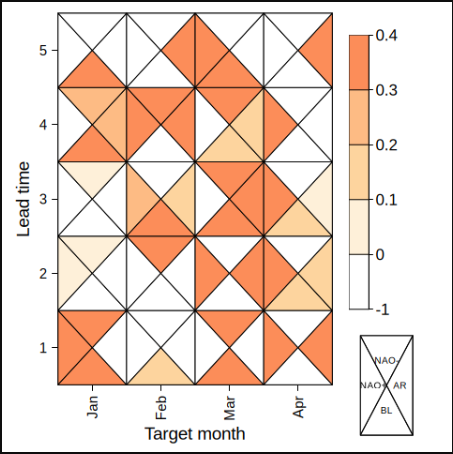

  • VizTriangles4Categories image

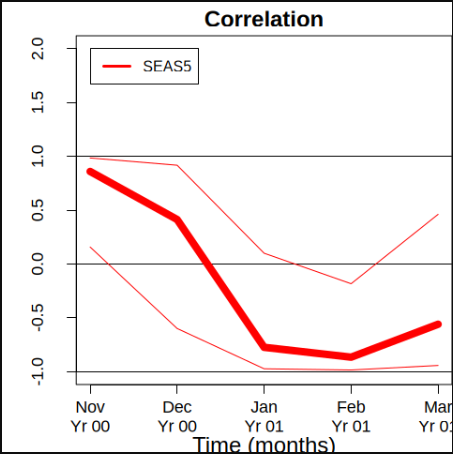

  • VizVsLTime (weird margins?) image
  • VizWeeklyClim - error from ggplot2:
Error in .make_numeric_version(x, strict, .standard_regexps()$valid_numeric_version) :
  invalid non-character version specification 'x' (type: double)
6. stop(msg, domain = NA)
5. .make_numeric_version(x, strict, .standard_regexps()$valid_numeric_version)
4. numeric_version(x)
3. as.numeric_version(e2)
2. Ops.numeric_version(packageVersion("ggplot2"), 3.4) at VizWeeklyClim.R#288
1. VizWeeklyClim(data = data, first_date = "2002-08-09", last_date = "2002-09-15",
ref_period = 2010:2019, data_years = 2000:2019, time_dim = "time",
sdate_dim = "sdate", toptitle = "Observed weekly means and climatology",
subtitle = "Target years: 2010 to 2019", ytitle = paste0("tas", ...
Edited by abatalla
